Heat pump NeoRé TG air-to-water a+++

The latest series of heat pump NeoRé TG excels in new design, better parametres, lower noise and ecological refrigerant R32.

The NeoRé TG heat pump is able to control heating or cooling of family house, heat up domestic hot water and control two heating circuits together. There is a possibility of secondary source connection.

Obviously the heat pump is equipped by backup electric heater 6 kW, web server and graphic touch screen.

Type and power
Type Power
NeoRé 5TG 5 kW
NeoRé 8TG 8 kW
NeoRé 11TG 11 kW
NeoRé 14TG 14 kW
NeoRé 8TG HP 8 kW
NeoRé 11TG HP 11 kW
NeoRé 14TG HP 14 kW
NeoRé 16TG HP 16 kW
Heat pump NeoRé TG
heating power
5 - 16 kW
acoustic pressure 5m distance
from 36 dBA
SCOP
up to 4.92

TOP properties

Comfort

You can control your home from a phone. Doesn't matter if from business trip or from the comfort of your coach.

Heating and cooling

Heats during winter, chills during summer. Come to visit us.

Technical support

With Neota Route service, you can access your pump remotely whenever you need it.

New design

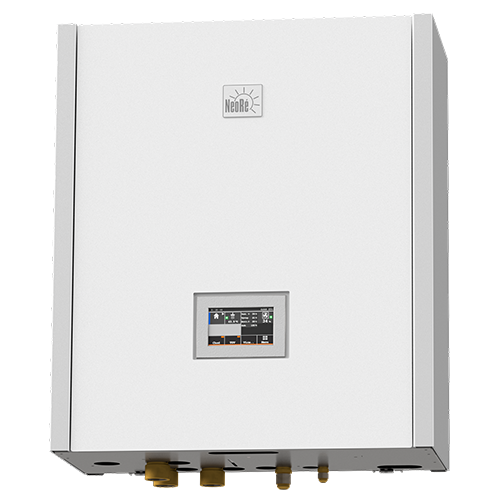

New indoor unit design for NeoRé TG heat pumps

For family house

The NeoRé series is designed for heating, cooling and domestic hot water heating in family houses. For commercial buildings should be NeoRé EX chosen.

Ecological refrigerant

All NeoRé TG heat pumps operate with R32 refrigerant.

automatic weather-compensated control – saving up to 20%
high output water temperature 55°C (with HP to 60°C)
economical operation up to -21°C of outdoor temperature
COP competitive factor
electronically controlled injection of refrigerant
6 kW backup heat source
energy-efficient circulator
stainless steel plate heat exchanger
can be connected in the cascade (1-8 units)
the heating and cooling
pool or secondary source´s operation
smart remote control
new design of indoor unit
low noise 38-42 dB
minimal maintenance
ecological refrigerant R32
backup heat source
6,0 kW (3 x 2 kW)
Indoor unit noise (acoustic power)
32,5 dB(A)
Indoor unit dimensions
65 x 57 x 30 cm
Indoor unit weight
48 kg netto
Condensation exchanger
stainless steel - soldered
Max. height of water column
18 m
Overpressure relief
0,25 MPa
Heating circuit connection
G1" inner thread
Pumping power
6,8 m
Circulation pump
ErP low energy PWM

Inverter NeoRé TG heat pumps belong to air-to-water heat pump category that means they use thermal energy from the air and transfer it to the heating water in heating system. The heating system ideally consists of underfloor or ceiling heating with which is the efficiency of heating system on the top level. You can combine it also with radiators but there is the efficiency lower because of high temperature decay.

The NeoRé TG heat pump consists of a quality Czech indoor unit and Japanese outdoor unit. It is a fully equipped heat pump which contains all neccessary components for heating function including DHW and secondary source (for example pool) heating SW in the base. These heat pumps could be installed to the new family houses as well as built houses where we are able to reduce the temperature decay of the heating system for better functionality.

The undisputed advantage of the NeoRé TG heat pump is the passive cooling function. It can be used mainly in summer months in combination of ceiling cooling system.

You can use smart remote control and check your heat pump remotly through the web server by mobile, tablet or PC.

Some of the NeoRé TG heat pumps received European Quality Label.

Standard for us

Standard equipment
  • comprehensive regulation by Foxtrot
  • integrated electric heater 3 x 2 kW
  • circulator with controlled speed and lower
    noise up to 6 dB
  • 8 l expansion tank for heating circuit
  • 2,5 bar heating circuit safety valve
  • sensor for pressure monitoring
  • 3-way valve for DHW heating
  • calorimeter
  • DHW circulation electric output
  • floor drying program
  • pool and secondary source service
  • equithermal regulation
  • graphic touch screen
  • build-in web server for remote control
  • cloud access

Need something more?

Optional equipment
indoor temperature sensor
3-way mixing valve
3-way pool valve
outdoor unit console
Neota Route service connection
noise lowering module for some models
