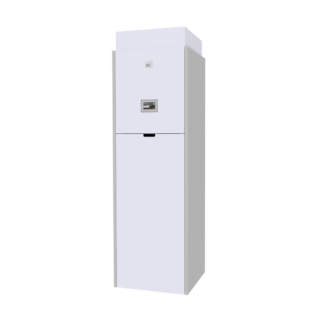

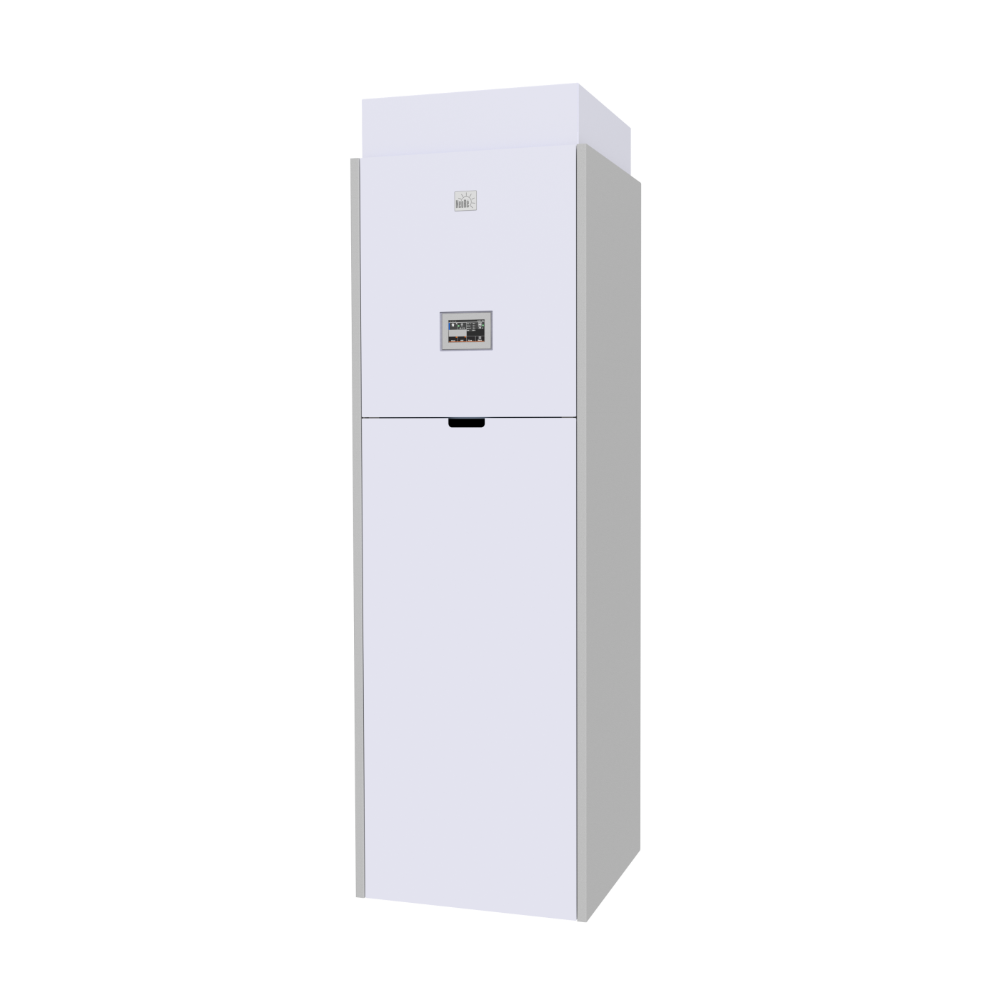

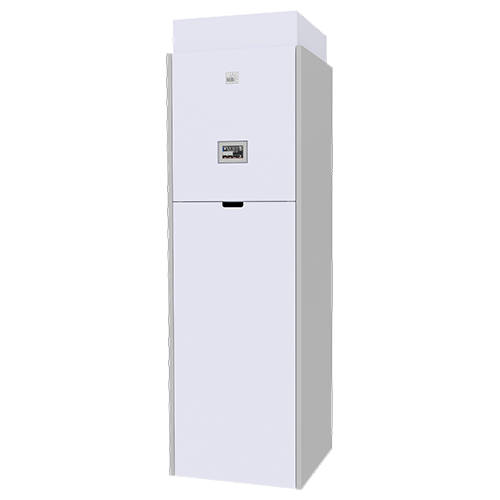

Heat pump NeoRé TG TX air-to-water a+++

The latest series of heat pump NeoRé TG TX excels in better parametres, lower noise and ecological refrigerant R32. It covers complete heating demands of family houses including domestic hot water heating in integrated 200 l stainless steel DHW tank.

The NeoRé TG TX heat pump is able to control heating or cooling of family house, heat up domestic hot water and control two heating circuits together. There is a possibility of secondary source connection.

Obviously the heat pump is equipped by backup electric heater 6 kW, build-in 200 l DHW tank, web server and graphic touch screen.

SVT kódy a ceny
Type Power
NeoRé 8TG TX 8 kW
NeoRé 11TG TX 11 kW
NeoRé 14TG TX 14 kW
NeoRé 16TG TX temporarily unavailable
NeoRé 8TG TX HP 8 kW
NeoRé 11TG TX HP 11 kW
NeoRé 14TG TX HP 14 kW
NeoRé 16TG TX HP 16 kW
heating power
5 - 16 kW
acoustic pressure 5m distance
from 36 dBA
up to 4,92

TOP properties


You can control your home from a phone. Doesn't matter if from business trip or from the comfort of your coach.

Heating and cooling

Heats during winter, chills during summer. Come to visit us.

Technical support

With Neota Route service, you can access your pump remotely whenever you need it.

New design

New indoor unit design for NeoRé TG heat pumps.

For family house

The NeoRé series is designed for heating, cooling and domestic hot water heating in family houses. For commercial buildings should be NeoRé EX chosen.

Ecological refrigerant

All NeoRé TG heat pumps operate with R32 refrigerant.

fully equipped indoor unit including expansion tanks and security valve
can be connected in the cascade (1-8 units)
automatic weather-compensated control – saving up to 20%
pool or secondary source´s operation
high output water temperature 55°C (with HP to 60°C)
smart remote control
economical operation up to -21°C of outdoor temperature
compact dimensions of the indoor unit - 211 x 63 x 63 cm
COP competitive factor
low noise 38-42 dB
electronically controlled injection of refrigerant
minimal maintenance
6 kW backup heat source
energy-efficient circulator
stainless steel plate heat exchanger
ecological refrigerant R32
Bivalent source
6,0 kW (3 x 2 kW)
Indoor unit noise (acoustic power)
32,5 dB(A)
Indoor unit dimensions
211 x 63 x 63
Indoor unit weight
186 kg netto
Condensation exchanger
stainless steel - soldered
Max. height of water column
18 m
Overpressure relief
0,25 MPa
Heating circuit connection
G1" inner thread
Pumping power
6,8 m
Circulation pump
ErP low energy PWM
DHW tank
200 l

Inverter NeoRé TG TX heat pumps belong to air-to-water heat pump category that means they use thermal energy from the air and transfer it to the heating water in heating system. The heating system ideally consists of underfloor or ceiling heating with which is the efficiency of heating system on the top level. You can combine it also with radiators but there is the efficiency lower because of high temperature decay.

The NeoRé TG TX heat pump consists of a quality Czech indoor unit and Japanese outdoor unit. It is a fully equipped heat pump including 200 l integrated stainless stell DHW tank. Except heating and DHW heating it can operate secondary source (for example pool) heating SW in the base. These heat pumps could be installed to the new family houses as well as built houses where it perfectly combines the useful value of the heat source with design.

The undisputed advantage of the NeoRé TG TX heat pump is the passive cooling function. It can be used mainly in summer months in combination of ceiling cooling system.

You can use smart remote control and check your heat pump remotly through the web server by mobile, tablet or PC.

Standard for us

Standard equipment
  • comprehensive regulation by Foxtrot
  • integrated electric heater 3 x 2 kW
  • circulator with controlled speed and lower
    noise up to 6 dB
  • 8 l expansion tank for heating circuit
  • 2,5 bar heating circuit safety valve
  • sensor for pressure monitoring
  • 3-way valve for DHW heating
  • calorimeter
  • DHW circulation electric output
  • 200 l stainless tank for DHW
  • floor drying program
  • pool and secondary source service
  • equithermal regulation
  • graphic touch screen
  • build-in web server for remote control
  • cloud access
  • magnetic purge filter

Need something more?

Optional equipment
indoor temperature sensor
NeoRé TX connection set
NeoRé TX DHW circulation set
3-way mixing valve
3-way pool valve
outdoor unit console
Neota Route service connection
noise lowering module for some models
