Heat pump NeoRé TG EX air to water a++

The special series of the NeoRé TG EX heat pumps is designed for heating of industrial buildings and large family houses to heat loss of approximately 30 kW.

NEW 2020

Type and power
Type Power
NeoRé 22TG EX 22 kW
NeoRé 28TG EX 28 kW
heating power
22 - 28 kW
acoustic pressure 5m distance
from 47 dBA
SCOP
up to 4,43

TOP properties

Comfort

You can control your home from a phone. Doesn't matter if from business trip or from the comfort of your coach.

Heating and cooling

Heats during winter, chills during summer. Come to visit us.

Technical support

With Neota Route service, you can access your pump remotely whenever you need it.

New design

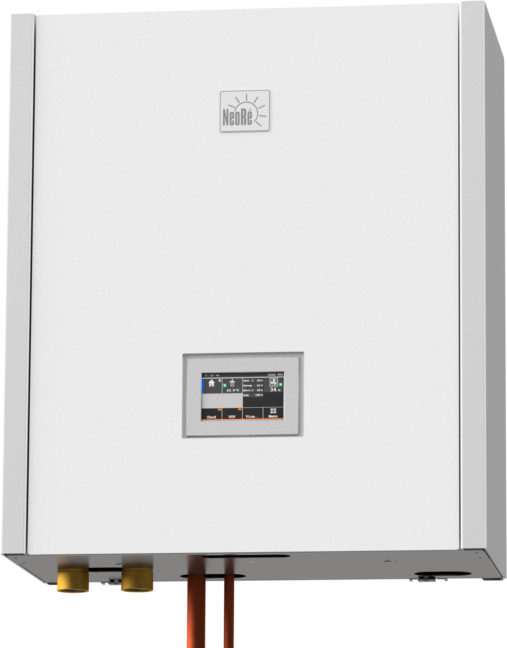

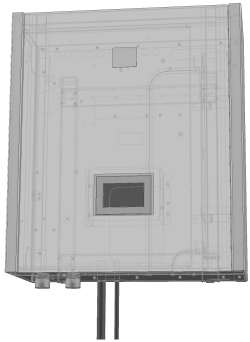

New indoor unit design for NeoRé TG heat pumps.

For family house

The NeoRé series is designed for heating, cooling and domestic hot water heating in family houses. For commercial buildings should be NeoRé EX chosen.

Ecological refrigerant

All NeoRé TG heat pumps operate with R32 refrigerant.

automatic weather-compensated control – saving up to 20%
high output water temperature 55°C (with HP to 60°C)
economical operation up to -21°C of outdoor temperature
COP competitive factor
electronically controlled injection of refrigerant
energy-efficient circulator
stainless steel plate heat exchanger
can be connected in the cascade (1-7 units)
smart remote control
new design of indoor unit
low noise up to 47 dB
minimal maintenance
ecological refrigerant R32

Inverter NeoRé TG heat pumps belong to air-to-water heat pump category that means they use thermal energy from the air and transfer it to the heating water in heating system. The heating system ideally consists of underfloor or ceiling heating with which is the efficiency of heating system on the top level. You can combine it also with radiators but there is the efficiency lower because of high temperature decay.

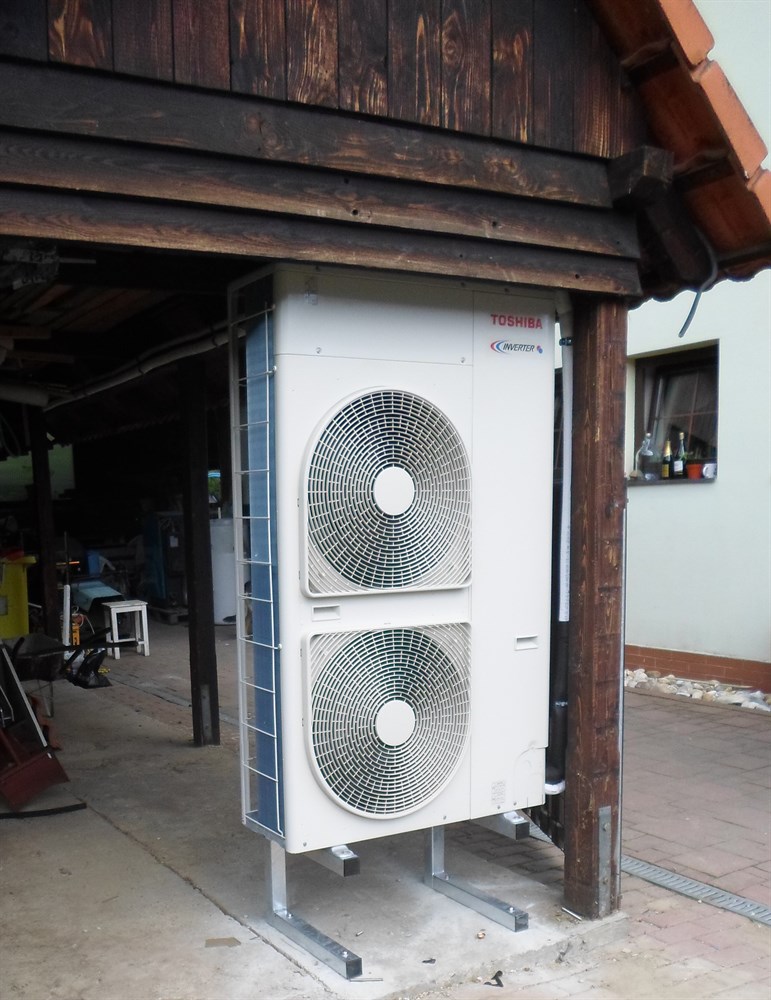

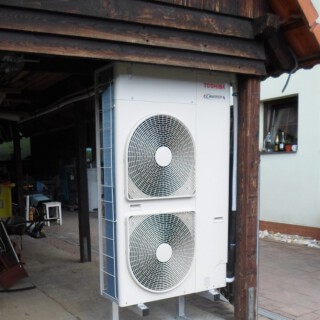

The NeoRé TG heat pump consists of a quality Czech indoor unit and Japanese outdoor unit. It is a fully equipped heat pump which contains all neccessary components for heating function including DHW and secondary source (for example pool) heating SW in the base. These heat pumps could be installed to the new family houses as well as built houses where we are able to reduce the temperature decay of the heating system for better functionality.

The undisputed advantage of the NeoRé TG heat pump is the passive cooling function. It can be used mainly in summer months in combination of ceiling cooling system.

You can use smart remote control and check your heat pump remotly through the web server by mobile, tablet or PC.

Some of the NeoRé TG heat pumps received European Quality Label.

Standard for us

Standard equipment
  • comprehensive regulation by Foxtrot
  • circulator with controlled speed and lower
    noise up to 6 dB
  • sensor for pressure monitoring
  • calorimeter
  • DHW circulation electric output
  • floor drying program
  • pool and secondary source service
  • equithermal regulation
  • graphic touch screen
  • build-in web server for remote control
  • cloud access

Need something more?

Optional equipment
indoor temperature sensor
3-way mixing valve
Neota Route service connection
outdoor unit console
3-way pool valve
